[ARCTIC TERN] Roof Hatch - Electric 500x700mm /19.68x27.56"

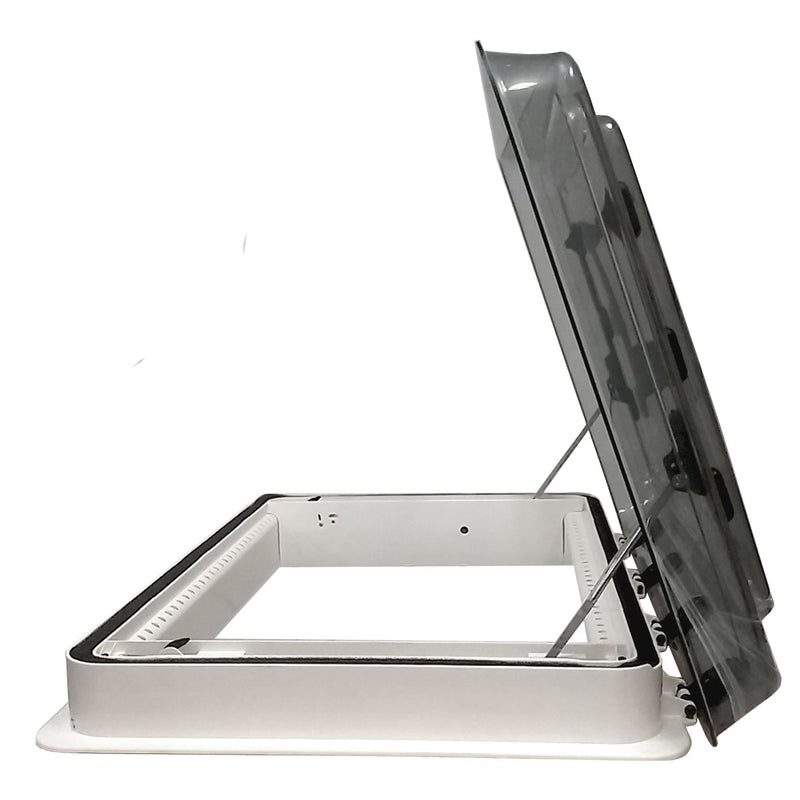

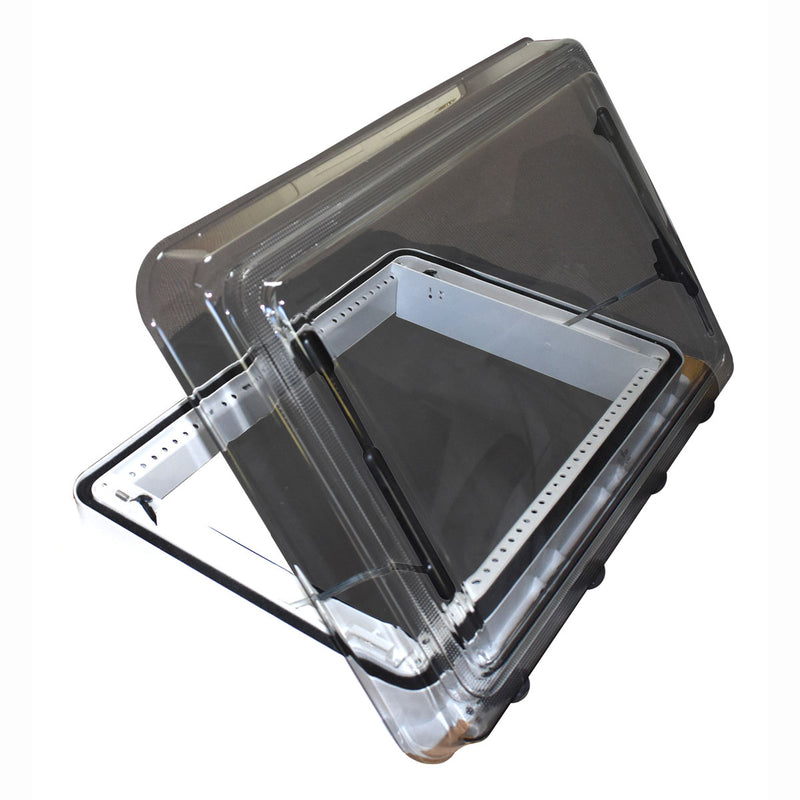

The Arctic Tern Roof Hatch is a must-have in your camper or van. We now offer only the motorized electric drive. The motorized version features, a German-made Bosch drive motor and a removable emergency hand crank. These hatches have been tested to 5000 cycles with no failure.

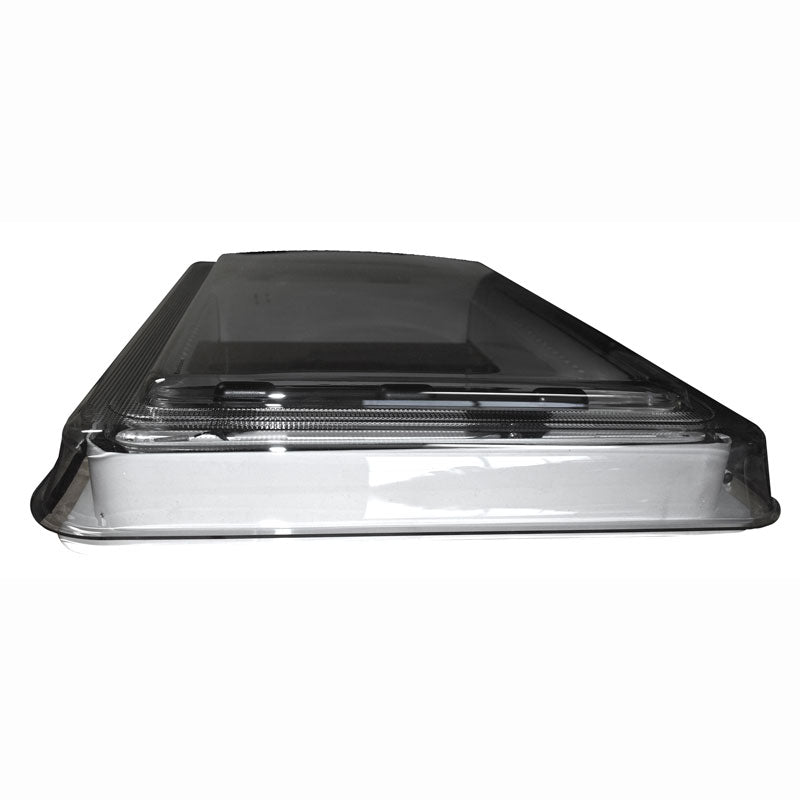

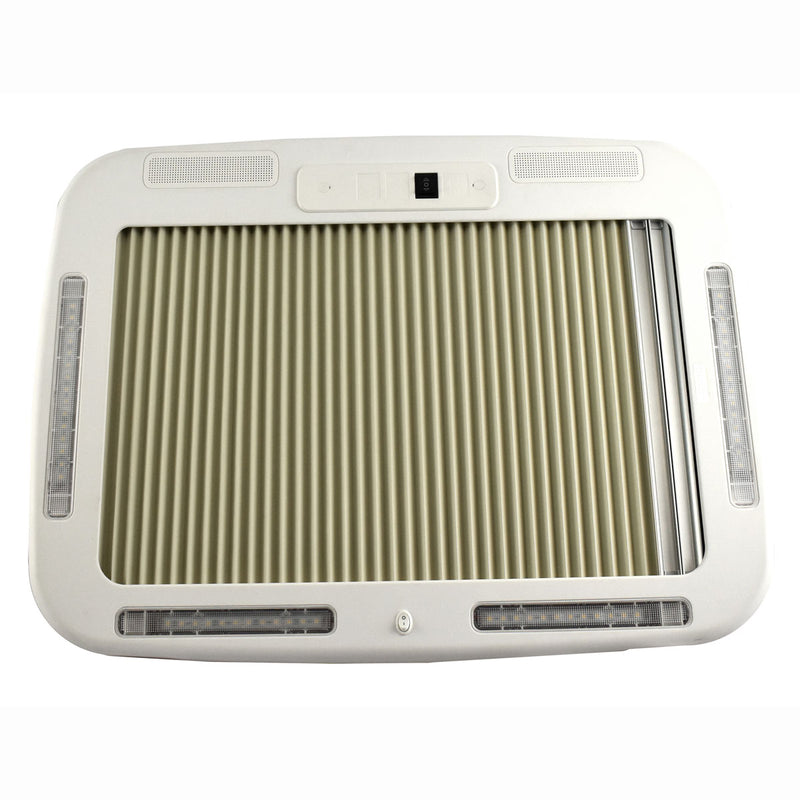

The hatch features a breathable seal that prevents the entry of dust but allows for some breathability in the cabin. The dome is a smoked double pane acrylic. Like all Arctic Tern window panels, these are European-made and meet strict ECE standards for UV resistance and impact. It features a pleated retractable screen and blind. The body of these hatches is high-strength ABS. The hatch features very bright LEDs that could serve as primary light in most cabins. Mounting is by adhesive and clips. The hatch requires a 12V service. The interior trim extends down 30mm.

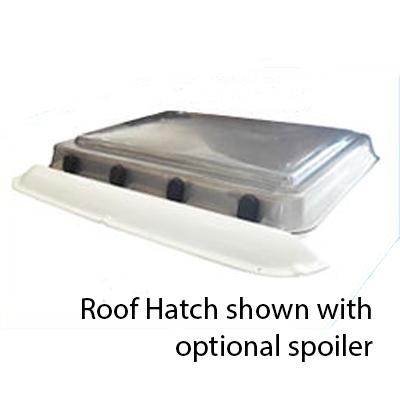

An optional Spoiler is available. This unique spoiler has a white acrylic exterior laminated to a fibreglass interior layer. The result is a beautiful smooth finish with exceptional strength. Mounting is by 3M high strength tape and rivets. This spoiler is highly recommended if the front of the hatch is exposed to high-speed oncoming air/water. If the hatch is mounted behind a solar panel or another windbreak, it would not be necessary.
500x700mm Roof Hatch
- Available for roof thicknesses from 30mm – 70mm /1.18″ – 2.76″. Must specify roof thickness when ordering for correct hardware.
- For roof thickness please add an expansion ring to your order 70-84mm/ 2.75" - 3.30"
-
Sits above the roof about 5″ and 1" below for interior
Additional documentation can be found on our
Resource Page- including installments and fitments.
Length (mm) / in | Width (mm) / in | |
---|---|---|
Cut Hole Size | 500 / 19.68″ | 700 / 27.56″ |
Exterior Dimensions | 593 / 23.35″ | 853 / 33.58″ |
Interior Dimensions | 600 / 23.62″ | 804 / 31.65″ |
