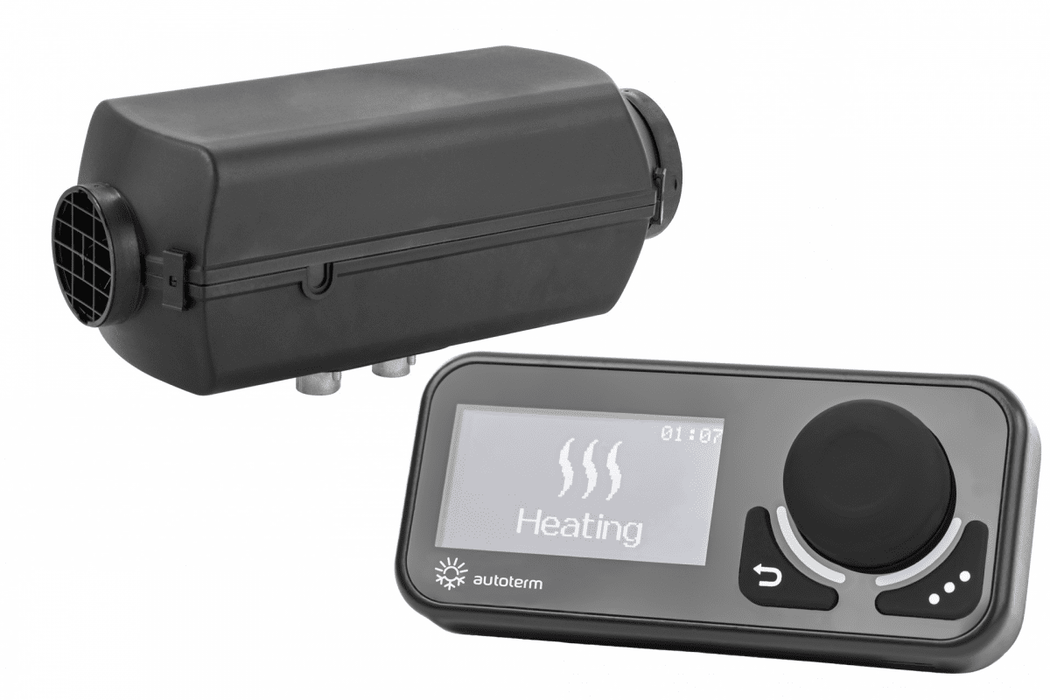

Diesel Air Heater PLANAR/Autoterm 44D High Altitude comes with a basic installation kit with the automatic High Altitude adjustment, and an Operations Manual. Designed to provide safe instant heat to the interior of any type of vehicle!
Ideal for larger RV's, Schoolies, Boats over 25' in Length!
We offer the 12 V version! Designed for High Altitude operation, up to 2500 m / 8200 ft.
This Truck Install Kit includes:
- Either a dial or digital controller
- A mounting plate
- HT Air duct adapter 96 x 75 mm
- HT Air duct host, diameter 3 in, 2.5 ft.
- HT Air vent, diameter 3 in. open
Dial Controller= Allows simplified heater control in “POWER” mode and “VENTILATION” mode – air supply with no heat.
Digital Controller= Allows various settings including a 7-day timer, air or coolant temperature setting, operational parameters monitoring.
Refer to Operation-Manual-44D-12 for installation and operation procedures.
For heating up to 35 ft. boats, campers, vans, expedition vehicles, buses, emergency shelters, ice fishing huts, and commercial trucks…. ETC! Efficient performance and quiet operation, with a 2-year warranty on parts and labor.
|Planar 44D-12 / -24 – Diesel Air Heater||1|
|Inline Metering Fuel Pump||1|
|Fuel Line, m||5.5|
|Fuel Pick-UP Stand Pipe||1|
|Plastic Fuel Tank 7L.||1|
|Stainless Steel Flexible Exhaust, ft.||3|
|Combustion Air Intake Hose, ft.||2|
|Remote Wired Controller||1|
|Fuel Pump El. Cable, 6 m.||1|
|Power Cable with Fuses||1|
|Set of Fasteners & Brackets||1|
|Heat Output; kW (BTU):||1.0-4.0 (3,200-13,600)|
|Fuel Consumption; l/h (gal/h):||0.12-0.49 (0.03-0.13)|
|Nominal Supply Voltage; V:||12|
|Power Consumption; W (A):||10-62.4 (0.8-5.2)|
|Airflow Rate; m3/h:||70-120|
|L x D x H; mm:||398 x 157 x 160|
|Dimensions||49 × 36.5 × 31.5 cm|
