12V Touch Control Panel 6 Buttons / 35A / Wired

Save 23% Save 23%
Original price $149.00
Original price $133.60 - Original price $149.00
Original price $149.00
Current price $115.00
$115.00 - $133.60
Current price $115.00

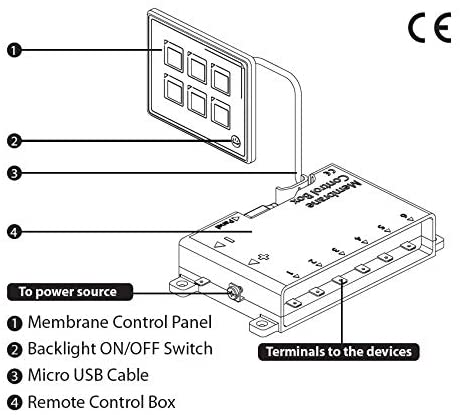

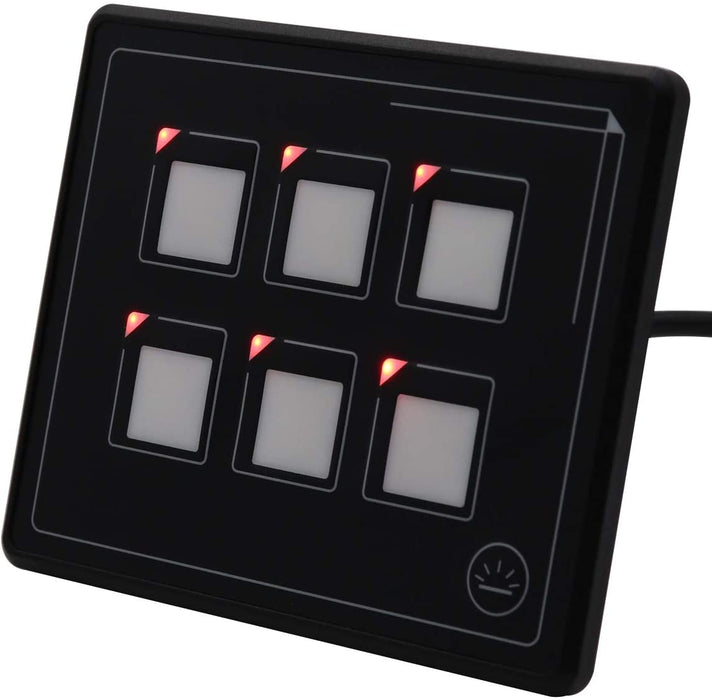

The touch-sensitive 6 Pin LED switch panel provides power to your van, camper, boat, yacht and caravan, radio, etc. It has built-in resettable fuses, is circuit protected and the membrane plate is water-resistant. It's easy to wire all accessories. Each switch allows for 10A for a total of 35A cumulative. There is a USB cable for attaching the control relay box to the touch screen (1m). Upgradeable to use a 20A plug.



FEATURES

  • Ultra-Compact panel size (60% smaller than traditional panels)

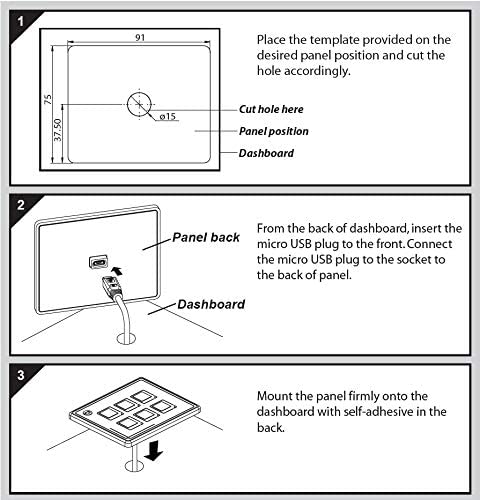

  • Easy to install; almost no mounting depth required (Ø .5" or 12.5mm)
  • Using compact, readily accessible micro-USB cable, end-user can replace cables of any desirable length
  • Flexible wiring – Control Relay Box installed 1m away from the touch panel
  • IP67 – protection against strong water jets (Panel Only)
  • ON-indication LED / 10A Self-resettable fuse for each branch
  • Backlight module allowing easy operation in darkness
  • Very low standby current (90% lower than previous models)
  • Programmable momentary button – all buttons can be programmed to be momentary (ideal for horn or wiper applications)
  • 60pcs Assorted Graphic and Text labels stickers set included
  • Not Bluetooth app compatible

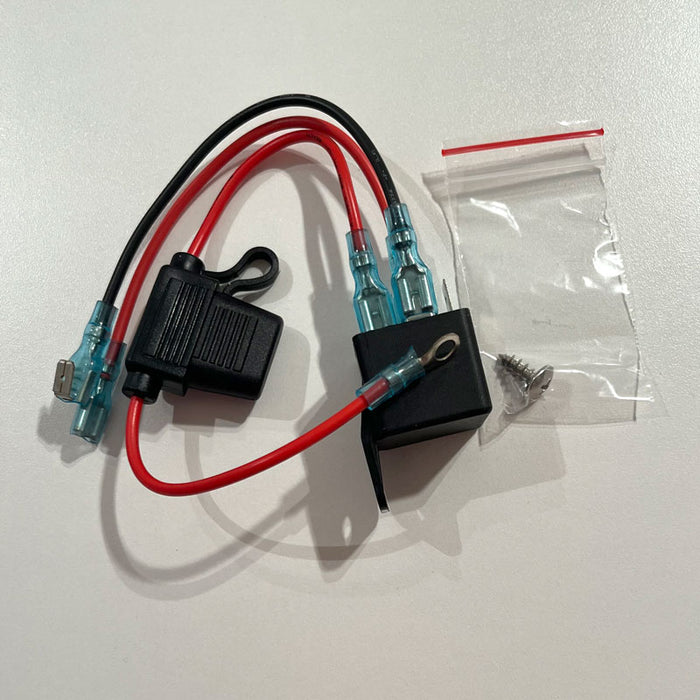

  • Upgrade one port to 20A

SPECIFICATION

  • Faceplate | PET membrane touch panel
  • Circuit Protection | Built-in Resettable Fuse (PPTC)
  • Switch Ratings | 10A per branch @ DC 12V
  • Panel Rating | Max Cumulative Amp: 35A
  • Voltage Rating | DC 9 - 15V (12V Model)

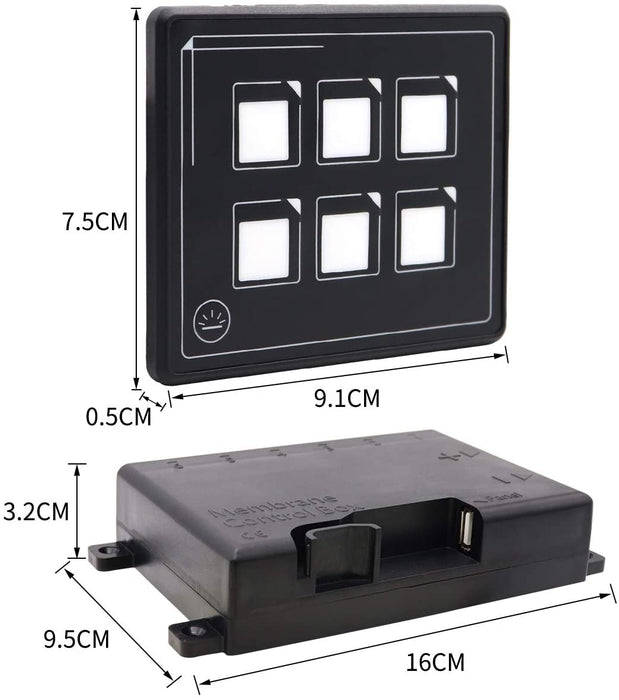

DIMENSIONS

  • Panel Dimensions | (W x H) 3.5"x2.95"/ 91 x 75mm
  • Control Box Dimensions | (H x W x D)5.35"x3.5"x1.25" / 136 x 90 x 32 mm
  • Panel Cut-out (W x L) | ø .5"/15 mm (13 x 8.5 mm)
