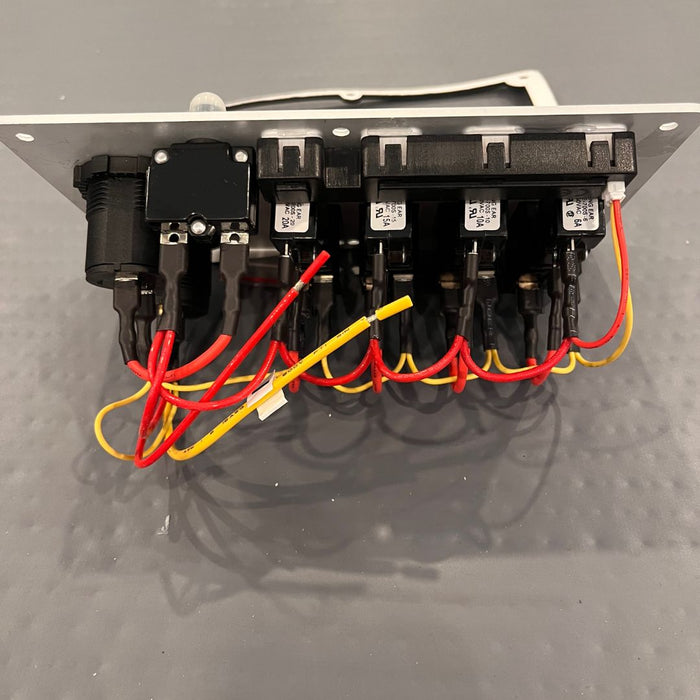

Aluminum Switch Panel with Cig. Light & USB Charger Sockets (White)

Save 22% Save 22%
Original price $85.00
Original price $85.00 - Original price $85.00
Original price $85.00
Current price $66.00
$66.00 - $66.00
Current price $66.00

FEATURES

  • New modern and compact panel design (15% smaller than SP30xx series)
  • Backlight modules for labels, allowing easy operation in darkness
  • IP66–protect against strong water jets
  • Push-reset circuit breakers with rubber boots
  • Illuminated (LED) C-7 rocker switches with dual voltage rating (12V / 24V)
  • Watertight mounting gasket included
  • Square shaped label stickers (30pcs) allow vertical or horizontal installation

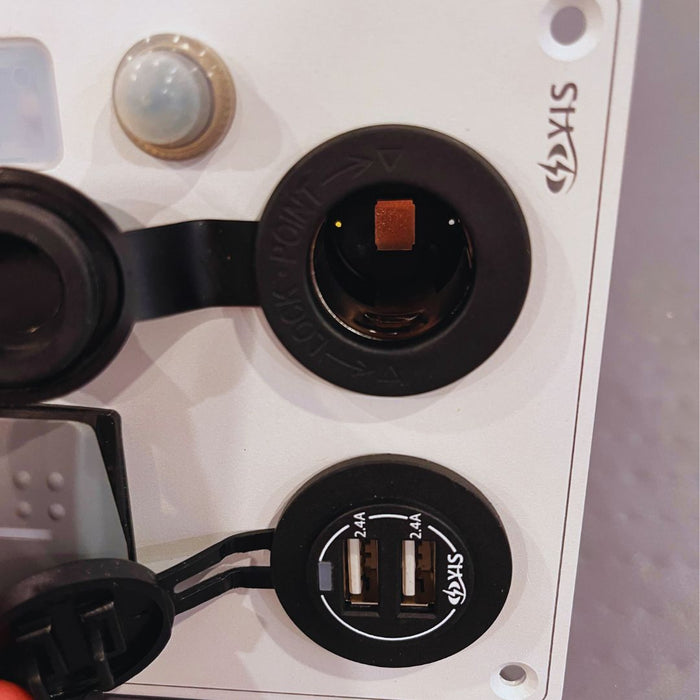

  • Dual Sockets: 1 DC Cig. Lighter Socket & 1 USB Charger Socket

SPECIFICATION

  • Faceplate | 0.1"(2.54mm) Coated Aluminum Alloy
  • Circuit Protection | Circuit Breakers
  • Switch Ratings | 20A @ DC 12V / 10A @ DC 24V (Dual Voltage)
  • Panel Rating | Max Cumulative Amp: 45A (Max possible Amperage for each panel is determined by the lower of total switches ratings or the Max Cumulative Amperage listed above)

DIMENSIONS

  • Product Dimensions (W x H) | 114 x 191mm
  • Mounting Depth | 75mm
  • Panel Cut-out (W x L) | 96 x 166mm
